Replacement for Stabilus Lift-O-Mat 9720BZ 0400N

$41.29




Replacement gas spring for the Stabilus Lift-O-Mat 9720BZ 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA9720BZ.
Stabilus Lift-O-Mat 9720BZ
WG20
elbow ball removal

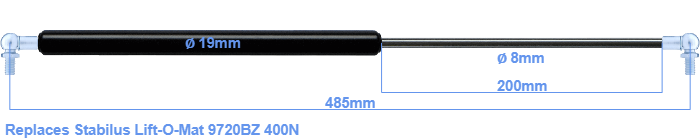

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke is 200 millimeter long. The total length of this gas strut is 485 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 445 millimeter. The force of this replacement gas spring is 400 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (400 N) and dimensions are identical to the original.
