Replacement for Stabilus Lift-O-Mat 9254XP 0250N
Replacement gas spring for the Stabilus Lift-O-Mat 9254XP 0250N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Hahn.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as CA9254XP. This gas spring is also used in Keuco Edition 300.

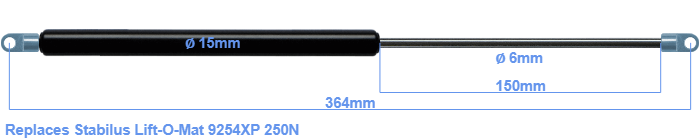

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke of the gas spring is 150 millimeter. The total length of this replacement gas spring is 364 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 332 mm. The force of this replacement gas spring is 250 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions nearly equal.
