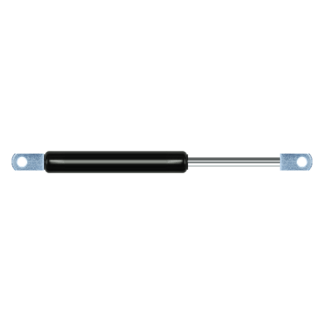

Replacement for Stabilus Lift-O-Mat 8832UP 0400N
Replacement gas spring for the Stabilus Lift-O-Mat 8832UP 0400N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as CA8832UP.
The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 80 millimeter. The total length of this replacement is 243 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 205 mm long (thread to thread). This gas spring (8832UP) has a force of 400 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
