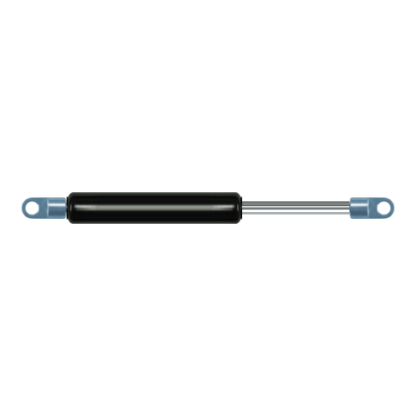

Replacement for Stabilus Lift-O-Mat 768169 0350N
$32.18
Replacement gas spring for the Stabilus Lift-O-Mat 768169 0350N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.
Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
View this gas spring in our configurator. This gas spring is also known as Effegi Brevetti Lift-O-Mat 6011SE, CA768169.
The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The stroke of the gas spring is 50 millimeter. The total length of this gas strut is 164 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 132 mm. The force of this replacement is 350 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
