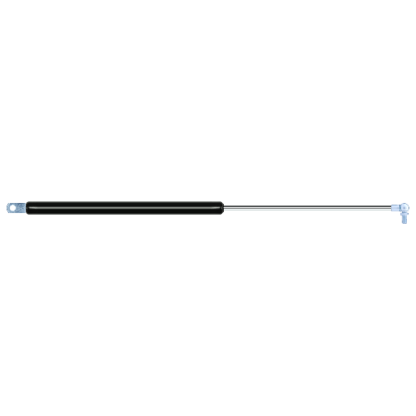

Replacement for Stabilus Lift-O-Mat 9173NB 0520N

$46.60



Replacement gas spring for the Stabilus Lift-O-Mat 9173NB 0520N. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 9173NB 0520N quantity

Add to basket

This gas spring is also known as CA9173NB.



The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The rod (the chrome part) is 250 mm long. The total length of this replacement gas spring is 584 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. The force of this replacement gas spring is 520 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
