Replacement for Stabilus Lift-O-Mat 3307KP 0090N
$37.25
Replacement gas spring for the Stabilus Lift-O-Mat 3307KP 0090N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA3307KP.

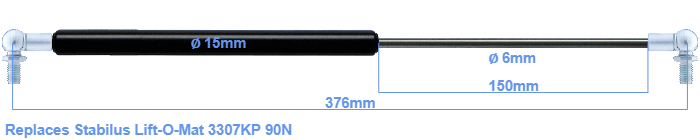

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 150 mm. In total, the length is 376 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). This gas spring (3307KP) has a force of 90 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
