Replacement for Stabilus Lift-O-Mat 4851DA 0150N

$44.38




Replacement gas spring for the Stabilus Lift-O-Mat 4851DA 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA4851DA.
Stabilus Lift-O-Mat 4851DA
WX22
elbow ball removal

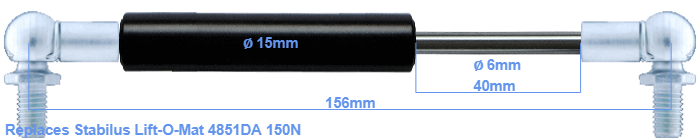

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod totals 6 mm. The stroke is 40 millimeter long. In total, the length is 156 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 112 mm. This replacement gas spring has a force of 150 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
