Replacement for Stabilus Lift-O-Mat 4848DZ 0100N
$44.38
Replacement gas spring for the Stabilus Lift-O-Mat 4848DZ 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA4848DZ.

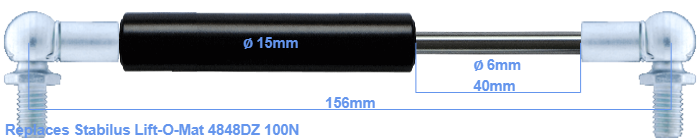

The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The stroke of the gas spring is 40 millimeter. In total, the length is 156 millimeter. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). This replacement gas spring (4848DZ) has a force of 100 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
