Replacement for Stabilus Lift-O-Mat 9761CT 0100N
$36.77
Replacement gas spring for the Stabilus Lift-O-Mat 9761CT 0100N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as CA9761CT.

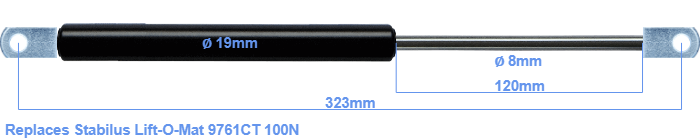

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 120 mm. The total length of this gas strut is 323 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 285 mm. The force of this replacement gas spring is 100 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
