Replacement for Stabilus Lift-O-Mat 2625NM 0100N
Replacement gas spring for the Stabilus Lift-O-Mat 2625NM 0100N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn. This gas spring is also known as CA2625NM.

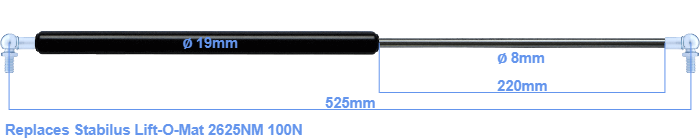

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 220 mm. The total length of this replacement is 525 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 485 mm. This replacement gas spring has a force of 100 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
