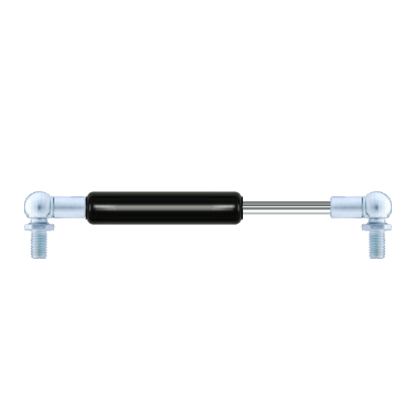

Replacement for Stabilus Lift-O-Mat 2611NO 0250N

$38.05




Replacement gas spring for the Stabilus Lift-O-Mat 2611NO 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA2611NO.
Stabilus Lift-O-Mat 2611NO
WX22
elbow ball removal

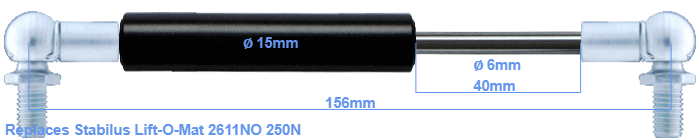

The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod is 6 millimeter. The chrome part is called the rod. It has a length of 40 mm. The total length of this gas strut is 156 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). The force of this replacement is 250 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
