Replacement for Stabilus Lift-O-Mat 2112LZ 0900N

$90.40



Replacement gas spring for the Stabilus Lift-O-Mat 2112LZ 0900N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2112LZ 0900N quantity

Add to basket

This gas spring is also known as CA2112LZ.

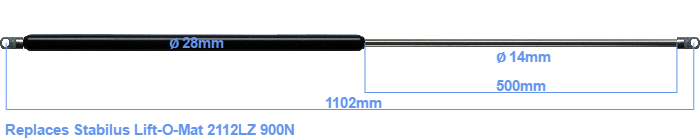

This gas spring has a cylinder diameter of 28 mm. The diameter of the rod totals 14 mm. The stroke (the retracting part) has a length of 500 mm. The total length of this replacement is exactly 1102 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 1048 mm long (thread to thread). This gas spring (2112LZ) has a force of 900 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are nearly equal.
