Replacement for Stabilus Lift-O-Mat 2612NJ 0300N

$38.05




Replacement gas spring for the Stabilus Lift-O-Mat 2612NJ 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA2612NJ.
Stabilus Lift-O-Mat 2612NJ
WX22
elbow ball removal

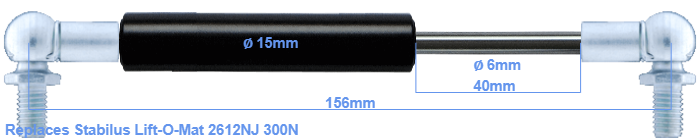

The diameter of the cylinder of this gas spring is 15 millimeters. The rod has a diameter of 6 mm. The stroke of the gas spring is 40 millimeter. The total length of this replacement is exactly 156 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 112 mm. This replacement gas spring (2612NJ) has a force of 300 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. The force (300 N) and dimensions are identical to the original.
