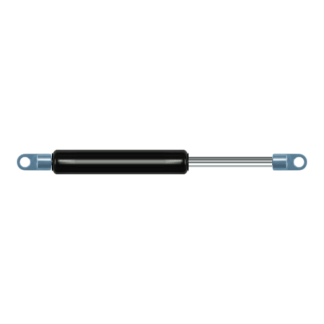

Replacement for Stabilus Lift-O-Mat 261114 0400N



Replacement gas spring for the Stabilus Lift-O-Mat 261114 0400N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.
This gas spring is also known as CA261114.
Stabilus Lift-O-Mat 261114

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke is 60 millimeter long. The total length of this gas strut is 203 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 165 mm long (thread to thread). This replacement gas spring (261114) has a force of 400 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are nearly equal.
