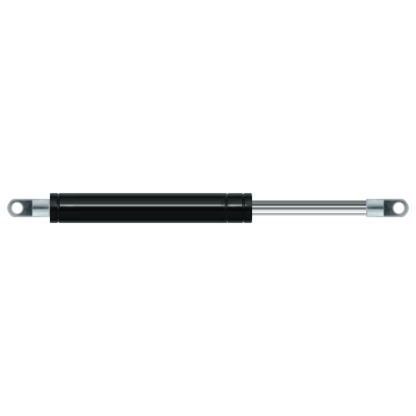

Replacement for Stabilus Lift-O-Mat 207535 4600N
Replacement gas spring for the Stabilus Lift-O-Mat 207535 4600N. The eye has a thickness of 14mm and a hole diameter of 14.1mm. Brand: Stabilus Industry Line.
The diameter of the tube of this replacement gas spring is 40mm instead of 42mm. This gas spring is also known as CA207535.
This gas spring has a cylinder diameter of 40 mm. The diameter of the rod is 20 millimeter. The rod (the chrome part) is 150 mm long. In total, the length is 500 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 416 mm. This gas spring (207535) has a force of 4600 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the dimensions and force are close to equal.
