Replacement for Stabilus Lift-O-Mat 2643LY 0120N



Replacement gas spring for the Stabilus Lift-O-Mat 2643LY 0120N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA2643LY.
Stabilus Lift-O-Mat 2643LY
elbow ball removal

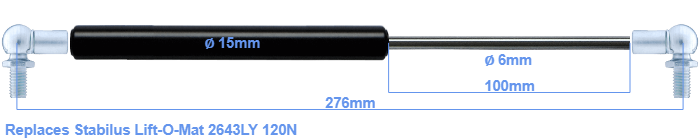

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The stroke is 100 millimeter long. In total, the length is 276 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 232 mm. This gas spring (2643LY) has a force of 120 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions equal.
