Replacement for Stabilus Lift-O-Mat 2679NT 0500N

$41.91




Replacement gas spring for the Stabilus Lift-O-Mat 2679NT 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
This gas spring is also known as CA2679NT.
Stabilus Lift-O-Mat 2679NT
WG20
elbow ball removal

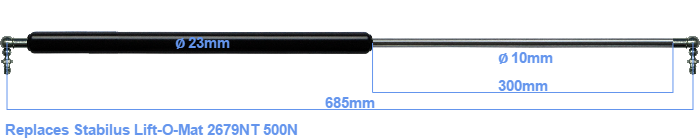

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod is 10 millimeter. The stroke (the retracting part) has a length of 300 mm. The total length of this replacement is exactly 685 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. The force of this replacement is 500 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions almost equal.
