Replacement for Ferron 526 30-450N

$33.99



Replacement gas spring for the Ferron 526 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Ferron 526 30-450N quantity

Add to basket

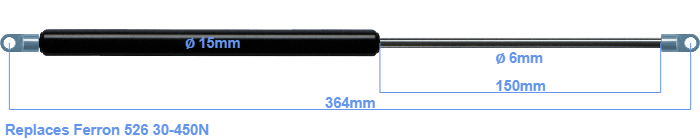

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod is 6 millimeter. The rod (the chrome part) is 150 mm long. In total, the length is 364 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 332 mm. This replacement gas spring has a force of 30-450 Newton. Attention: this is not an official Ferron gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (30-450 N) and dimensions are close to identical to the original.
