Replacement for Ferron 565 80-1250N

$48.80




Replacement gas spring for the Ferron 565 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


  • View this gas spring in our configurator.

    Ferron 565
    AR19

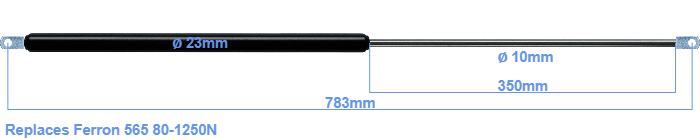

    The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The rod (the chrome part) is 350 mm long. In total, the length is 783 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 745 mm. This gas spring (565) has a force of 80-1250 Newton. This is not an original gas spring produced by Ferron, but it can replace a Ferron gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
