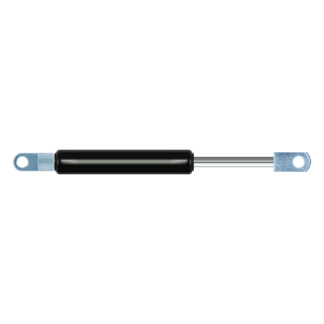

Replacement for APSOvib 12.2162.0055 550N
Replacement gas spring for the APSOvib 12.2162.0055 550 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as AP12.2162.0055.

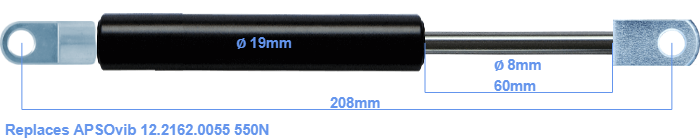

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The stroke is 60 millimeter long. The total length of this replacement gas spring is 208 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 165 mm long (thread to thread). This gas spring (12.2162.0055) has a force of 550 Newton. This is not an official APSOvib gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
