Replacement for Ferron 544 50-800N

$30.81




Replacement gas spring for the Ferron 544 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.
Clear

Ferron 544
AR19

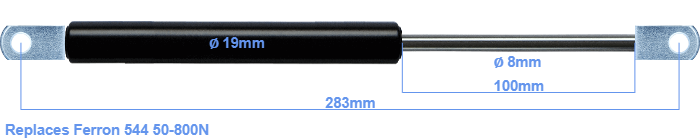

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The stroke is 100 millimeter long. The total length of this replacement gas spring is 283 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 245 mm long (thread to thread). The force of this replacement is 50-800 Newton. This is not an original gas spring from Ferron, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (50-800 N) and dimensions are almost identical to the original.
