Replacement for Stabilus Lift-O-Mat 753041 0400N

$46.83



available from 13th November


Replacement gas spring for the Stabilus Lift-O-Mat 753041 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
This gas spring is also known as CA753041.
Stabilus Lift-O-Mat 753041
WG20
elbow ball removal

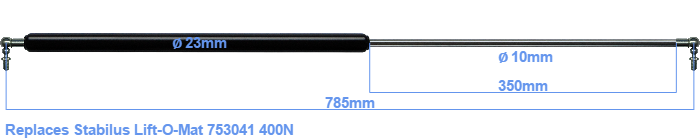

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod is 10 millimeter. The rod (the chrome part) is 350 mm long. The total length of this gas strut is 785 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 745 mm. This replacement gas spring (753041) has a force of 400 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (400 N) and dimensions are nearly identical to the original.
