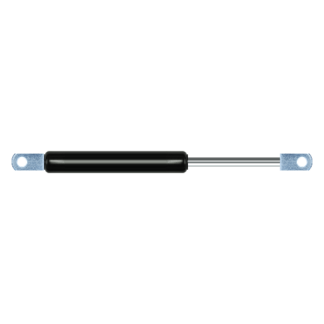

Replacement for Stabilus Lift-O-Mat 8362MK 0450N

$35.07




Replacement gas spring for the Stabilus Lift-O-Mat 8362MK 0450N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.
This gas spring is also known as CA8362MK.
Stabilus Lift-O-Mat 8362MK
AR19


The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The chrome part is called the rod. It has a length of 80 mm. The total length of this replacement gas spring is 243 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 205 mm. This replacement gas spring (8362MK) has a force of 450 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (450 N) and dimensions are almost identical to the original.
