Replacement for Stabilus Lift-O-Mat 7737UF 0080N
$49.51
Replacement gas spring for the Stabilus Lift-O-Mat 7737UF 0080N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.
View this gas spring in our configurator. This gas spring is also known as CA7737UF.

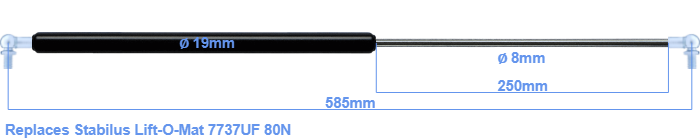

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is exactly 585 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This replacement gas spring (7737UF) has a force of 80 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
