Replacement for Stabilus Lift-O-Mat 4773QO 0050N
$44.38
Replacement gas spring for the Stabilus Lift-O-Mat 4773QO 0050N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA4773QO.

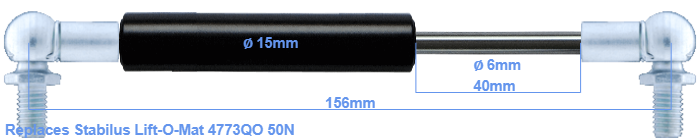

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The rod (the chrome part) is 40 mm long. The total length of this replacement is exactly 156 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 112 mm. This gas spring (4773QO) has a force of 50 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, the dimensions and force are equal.
