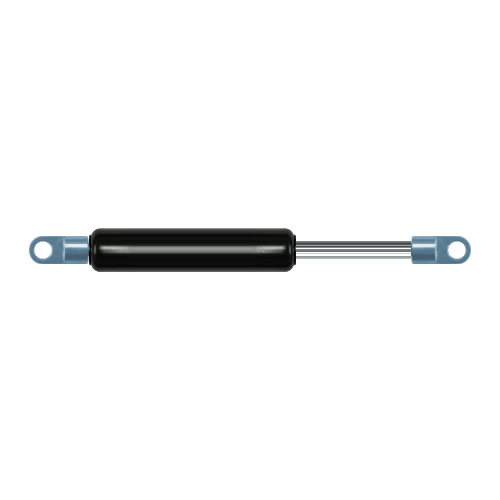

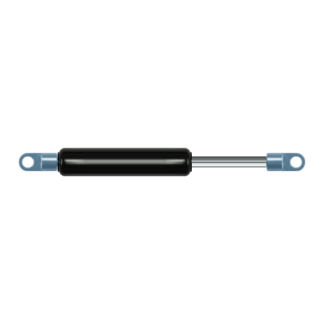

Replacement for Stabilus Lift-O-Mat 094307 0400N
Replacement gas spring for the Stabilus Lift-O-Mat 094307 0400N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as CA094307.
The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod totals 6 mm. The chrome part is called the rod. It has a length of 40 mm. The total length of this replacement is exactly 144 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 112 millimeter. The force of this replacement gas spring is 400 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
