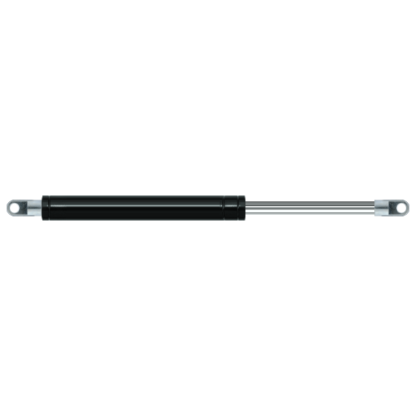

Replacement for Stabilus Lift-O-Mat 207462 3200N

$107.20




Replacement gas spring for the Stabilus Lift-O-Mat 207462 3200N. The eye has a thickness of 14mm and a hole diameter of 14.1mm. Brand: Hahn.

Please note:
The diameter of the tube of this replacement gas spring is 40mm instead of 42mm.
This gas spring is also known as CA207462.
AU42


The diameter of the black cylinder of this gas spring is 40 millimeter. The diameter of the rod is 20 millimeter. The stroke (the retracting part) has a length of 200 mm. The total length of this gas strut is 600 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 516 mm. The force of this replacement gas spring is 3200 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions almost equal.
