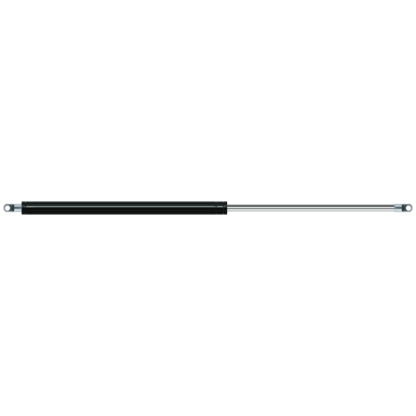

Replacement for Stabilus Lift-O-Mat 207802 4600N
Replacement gas spring for the Stabilus Lift-O-Mat 207802 4600N. The eye has a thickness of 14mm and a hole diameter of 14.1mm. Brand: Stabilus Industry Line.
The diameter of the tube of this replacement gas spring is 40mm instead of 42mm. This gas spring is also known as CA207802.
The diameter of the cylinder of this gas spring is 40 millimeters. The diameter of the rod totals 20 mm. The stroke (the retracting part) has a length of 500 mm. The total length of this replacement is 1200 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 1116 mm. The force of this replacement is 4600 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions almost equal.
