Replacement for Stabilus Lift-O-Mat 251976 0200N

$48.16



Replacement gas spring for the Stabilus Lift-O-Mat 251976 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 251976 0200N quantity

Add to basket

This gas spring is also known as CA251976.

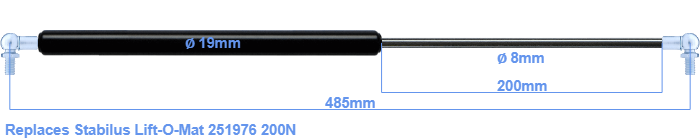

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 200 mm. In total, the length is 485 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This replacement gas spring (251976) has a force of 200 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, the force and dimensions equal.
