Replacement for Stabilus Lift-O-Mat 095591 0400N
$58.86
Out of stock until approx. 5/7/24
Replacement gas spring for the Stabilus Lift-O-Mat 095591 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as CA095591.

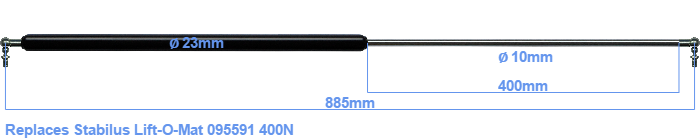

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke is 400 millimeter long. The total length of this replacement is 885 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 845 millimeter. The force of this replacement gas spring is 400 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
