Replacement for Stabilus Lift-O-Mat 095540 0150N
$58.86
Out of stock until approx. 5/7/24
Replacement gas spring for the Stabilus Lift-O-Mat 095540 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as CA095540.

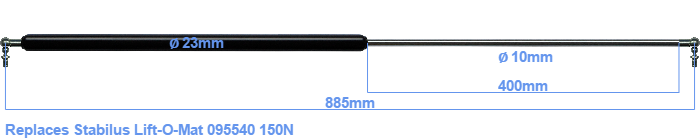

The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod is 10 millimeter. The stroke is 400 millimeter long. In total, the length is 885 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 845 mm. The force of this replacement is 150 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions almost entirely equal.
