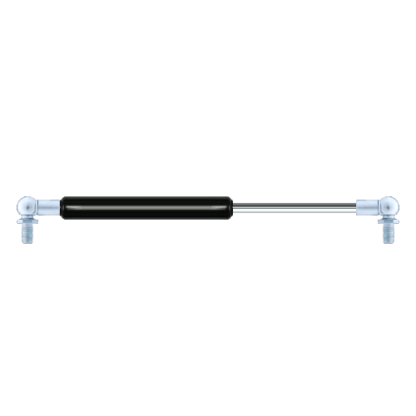

Replacement for Stabilus Lift-O-Mat 094382 0400N



Replacement gas spring for the Stabilus Lift-O-Mat 094382 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA094382.
Stabilus Lift-O-Mat 094382
elbow ball removal

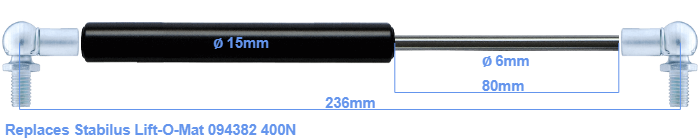

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke is 80 millimeter long. The total length of this gas strut is 236 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). This replacement gas spring (094382) has a force of 400 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a Stabilus Industry Line gas spring. The force (400 N) and dimensions are identical to the original.
