Replacement for Stabilus Lift-O-Mat 095087 0400N

$43.06



Replacement gas spring for the Stabilus Lift-O-Mat 095087 0400N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 095087 0400N quantity

Add to basket

This gas spring is also known as CA095087.

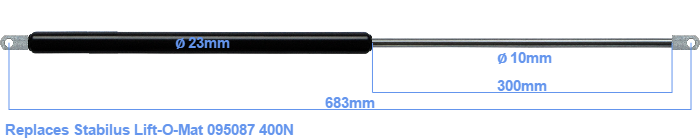

The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The rod (the chrome part) is 300 mm long. The total length of this gas strut is 683 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring (095087) has a force of 400 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions almost entirely equal.
