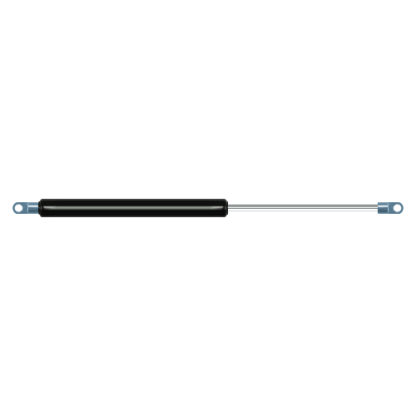

Replacement for Stabilus Lift-O-Mat 094358 0400N

$28.94




Replacement gas spring for the Stabilus Lift-O-Mat 094358 0400N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as CA094358.
Stabilus Lift-O-Mat 094358
AX16


The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The rod (the chrome part) is 120 mm long. The total length of this replacement gas spring is 304 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). The force of this replacement gas spring is 400 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the dimensions and force are almost entirely equal.
