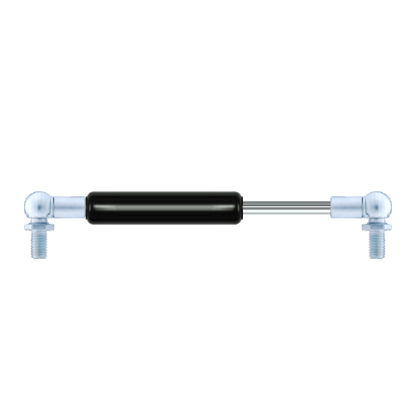

Replacement for Stabilus Lift-O-Mat 094366 0400N

$38.05




Replacement gas spring for the Stabilus Lift-O-Mat 094366 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
This gas spring is also known as CA094366.
Stabilus Lift-O-Mat 094366
WX22
elbow ball removal

This gas spring has a cylinder diameter of 15 mm. The rod has a diameter of 6 mm. The stroke of the gas spring is 40 millimeter. In total, the length is 156 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 112 mm. This gas spring (094366) has a force of 400 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a HAHN gas spring. The force (400 N) and dimensions are identical to the original.
