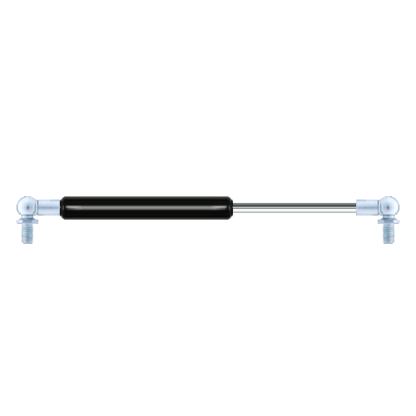

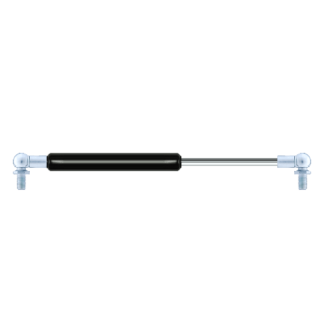

Replacement for Stabilus Lift-O-Mat 4928DD 0400N

$31.35




Replacement gas spring for the Stabilus Lift-O-Mat 4928DD 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA4928DD.
WX22
elbow ball removal

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 80 mm. In total, the length is 236 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 192 mm. The force of this replacement is 400 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
