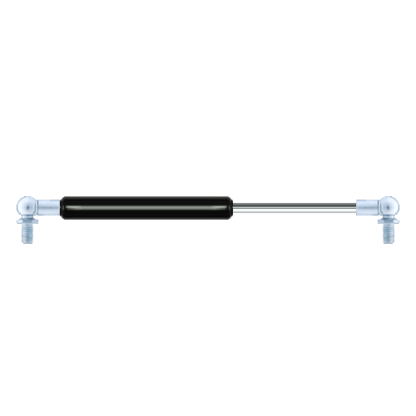

Replacement for Stabilus Lift-O-Mat 4926DN 0350N

$31.35




Replacement gas spring for the Stabilus Lift-O-Mat 4926DN 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA4926DN.
Stabilus Lift-O-Mat 4926DN
WX22
elbow ball removal

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The chrome part is called the rod. It has a length of 80 mm. The total length of this replacement is exactly 236 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 192 millimeter. The force of this replacement gas spring is 350 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are equal.
