Replacement for Stabilus Lift-O-Mat 083895 0200N
$49.51
Replacement gas spring for the Stabilus Lift-O-Mat 083895 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA083895.

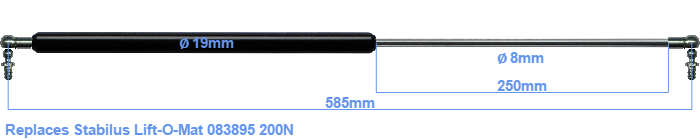

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement gas spring is 585 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This replacement gas spring (083895) has a force of 200 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions equal.
