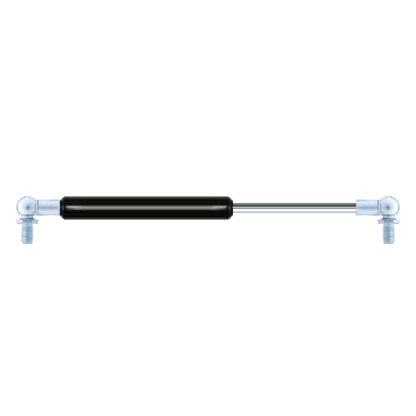

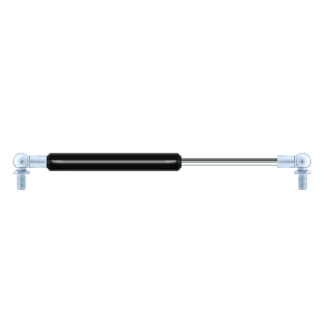

Replacement for Stabilus Lift-O-Mat 082902 0150N



Replacement gas spring for the Stabilus Lift-O-Mat 082902 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA082902.
Stabilus Lift-O-Mat 082902
elbow ball removal

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The rod (the chrome part) is 80 mm long. The total length of this replacement is 236 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 192 millimeter. This replacement gas spring has a force of 150 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand Stabilus Industry Line. The force (150 N) and dimensions are identical to the original.
