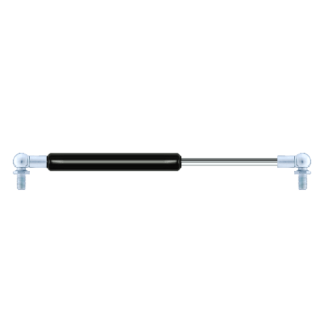

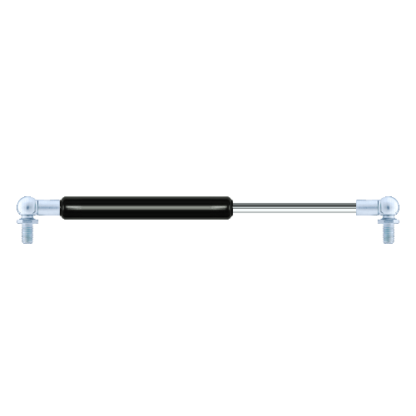

Replacement for Stabilus Lift-O-Mat 082910 0200N

$36.56




Replacement gas spring for the Stabilus Lift-O-Mat 082910 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA082910.
Stabilus Lift-O-Mat 082910
WX22
elbow ball removal

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The stroke is 80 millimeter long. The total length of this gas strut is 236 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 192 mm. The force of this replacement gas spring is 200 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
