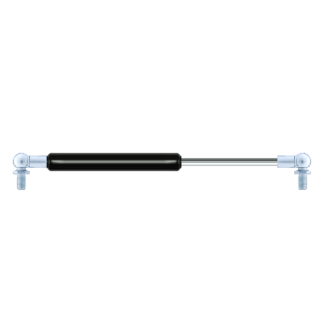

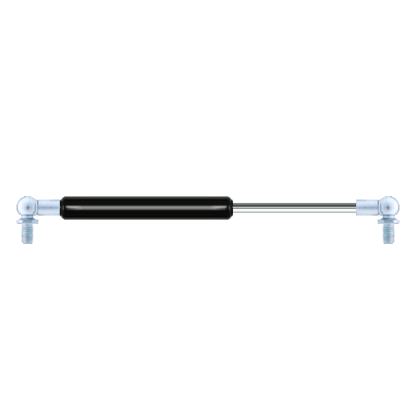

Replacement for Stabilus Lift-O-Mat 082937 0300N

$36.56




Replacement gas spring for the Stabilus Lift-O-Mat 082937 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA082937.
Stabilus Lift-O-Mat 082937
WX22
elbow ball removal

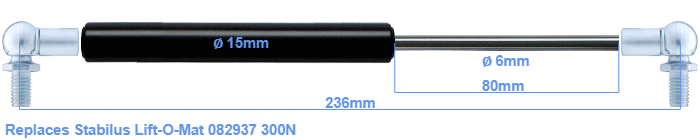

This gas spring has a cylinder diameter of 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement is 236 millimeter. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). The force of this replacement gas spring is 300 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
