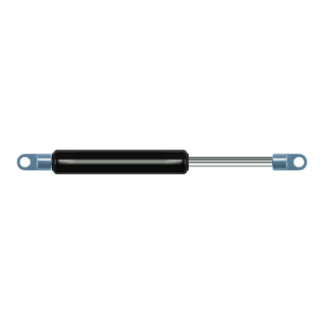

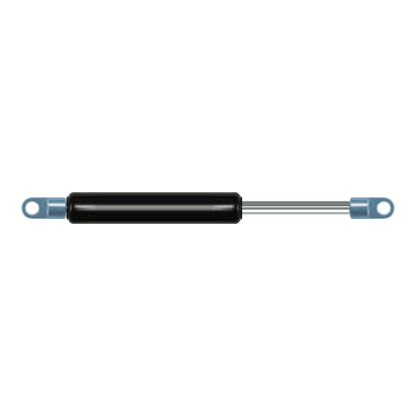

Replacement for Stabilus Lift-O-Mat 105878 0400N

$27.58




Replacement gas spring for the Stabilus Lift-O-Mat 105878 0400N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as Effegi Brevetti Lift-O-Mat 4775SX, CA105878.
Stabilus Lift-O-Mat 105878
AX16


The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 50 mm. The total length of this replacement is 164 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 132 millimeter. This replacement gas spring has a force of 400 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are almost entirely equal.
