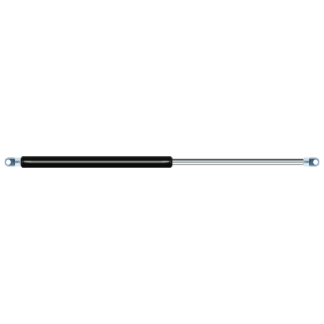

Replacement for Stabilus Lift-O-Mat 085642 2100N

$52.20




Replacement gas spring for the Stabilus Lift-O-Mat 085642 2100N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Hahn.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.
  • This gas spring is also known as CA085642.
    AU27


    This gas spring has a cylinder diameter of 28 mm. The cross section of the rod is 14 mm. The stroke (the retracting part) has a length of 300 mm. In total, the length is 702 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 648 mm. The force of this replacement is 2100 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are almost entirely equal.
