Replacement for Novotec 588536 50-800N

$46.53




Replacement gas spring for the Novotec 588536 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.
  • Clear

    Novotec 588536
    AR19

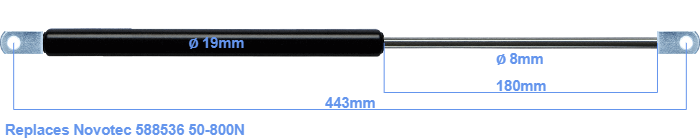

    The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 180 mm. The total length of this gas strut is 443 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 405 mm. This replacement gas spring (588536) has a force of 50-800 Newton (N). This gas spring can replace a Novotec gas spring, but is not an orignal Novotec one. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
