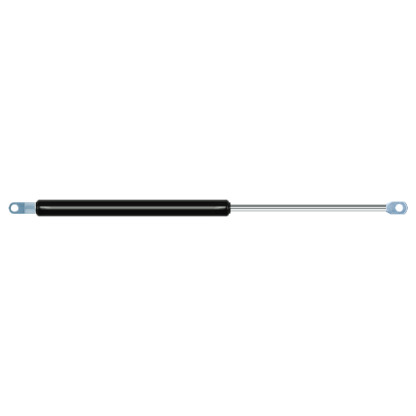

Replacement for Lesjöfors 9187 500N

$54.48




Replacement gas spring for the Lesjöfors 9187 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.


    • View this gas spring in our configurator.

    Lesjöfors 9187
    AS24AR16_8

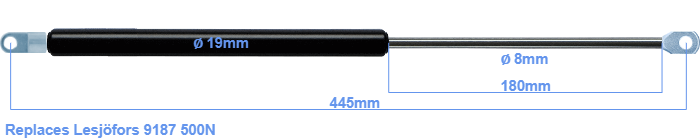

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 180 mm long. In total, the length is 445 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 405 mm. This replacement gas spring has a force of 500 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions nearly equal.
    Category:
    Replacement for Lesjöfors 9187 500N
