Replacement for Lesjöfors 9204 300N

$48.22




Replacement gas spring for the Lesjöfors 9204 300 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

  • Lesjöfors 9204
    AS24AR16_8

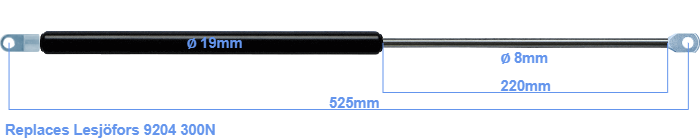

    This gas spring has a cylinder diameter of 19 mm. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 220 mm. The total length of this replacement gas spring is 525 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 485 millimeter. This gas spring (9204) has a force of 300 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
