Replacement for Lesjöfors 9286 1200N

$36.07




Replacement gas spring for the Lesjöfors 9286 1200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


  • View this gas spring in our configurator.

    Lesjöfors 9286
    AR19

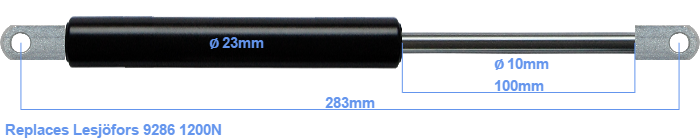

    The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke of the gas spring is 100 millimeter. The total length of this replacement is 283 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. This replacement gas spring has a force of 1200 Newton. This gas spring can replace a Lesjöfors gas spring, but is not an orignal Lesjöfors one. This gas spring was produced by Stabilus subsidiary HAHN. The force (1200 N) and dimensions are almost identical to the original.
