Replacement for Lesjöfors 9331 800N

$53.04




Replacement gas spring for the Lesjöfors 9331 800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9331
    AR19

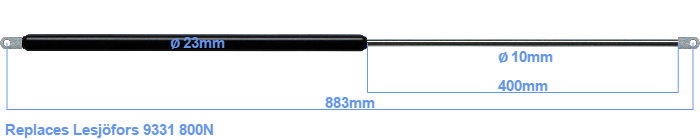

    The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The stroke (the retracting part) has a length of 400 mm. The total length of this replacement is 883 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 845 millimeter. This gas spring (9331) has a force of 800 Newton. This is not an official Lesjöfors gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. Nevertheless, the force and dimensions nearly equal.
    Category:
    Replacement for Lesjöfors 9331 800N
