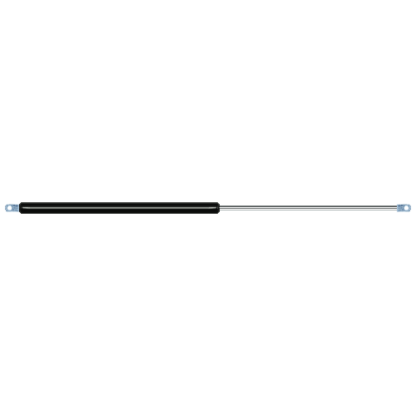

Replacement for Lesjöfors 9320 1000N

$48.80




Replacement gas spring for the Lesjöfors 9320 1000 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9320
    AR19


    The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 350 mm. The total length of this replacement is exactly 783 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 745 mm. This gas spring (9320) has a force of 1000 Newton. Attention: this is not an official Lesjöfors gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
    Category:
    Replacement for Lesjöfors 9320 1000N
