Replacement for Lesjöfors 9332 900N

$45.49




Replacement gas spring for the Lesjöfors 9332 900 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

  • Lesjöfors 9332
    AR19

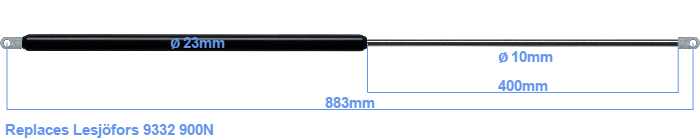

    The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 400 mm. In total, the length is 883 millimeter. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 845 mm. This gas spring (9332) has a force of 900 Newton. This is not an official Lesjöfors gas spring, but a so called replacement. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are nearly equal.
